Continuous Elevators

Elevators with continuous rigging.

CAD References

Section titled “CAD References”

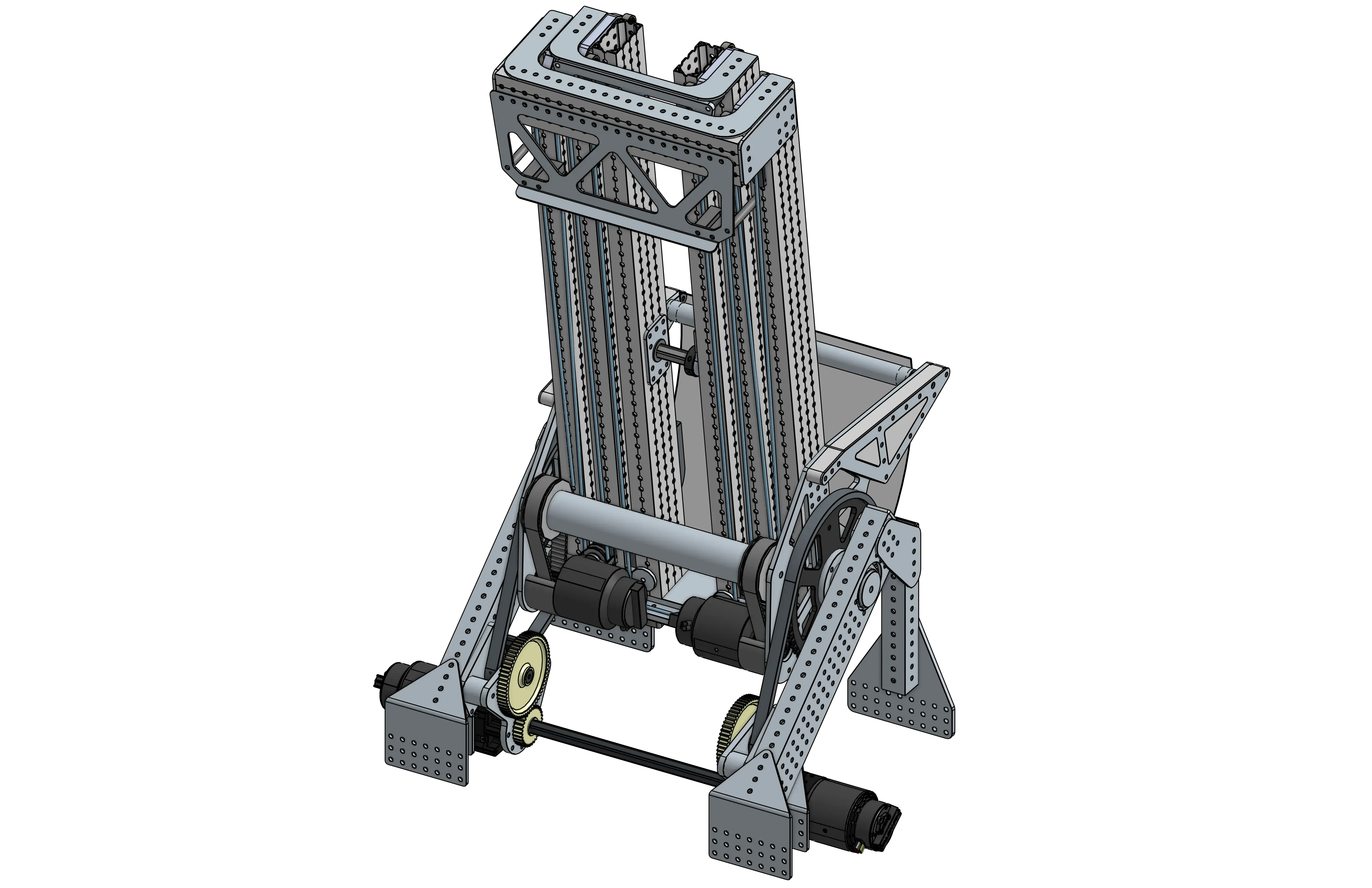

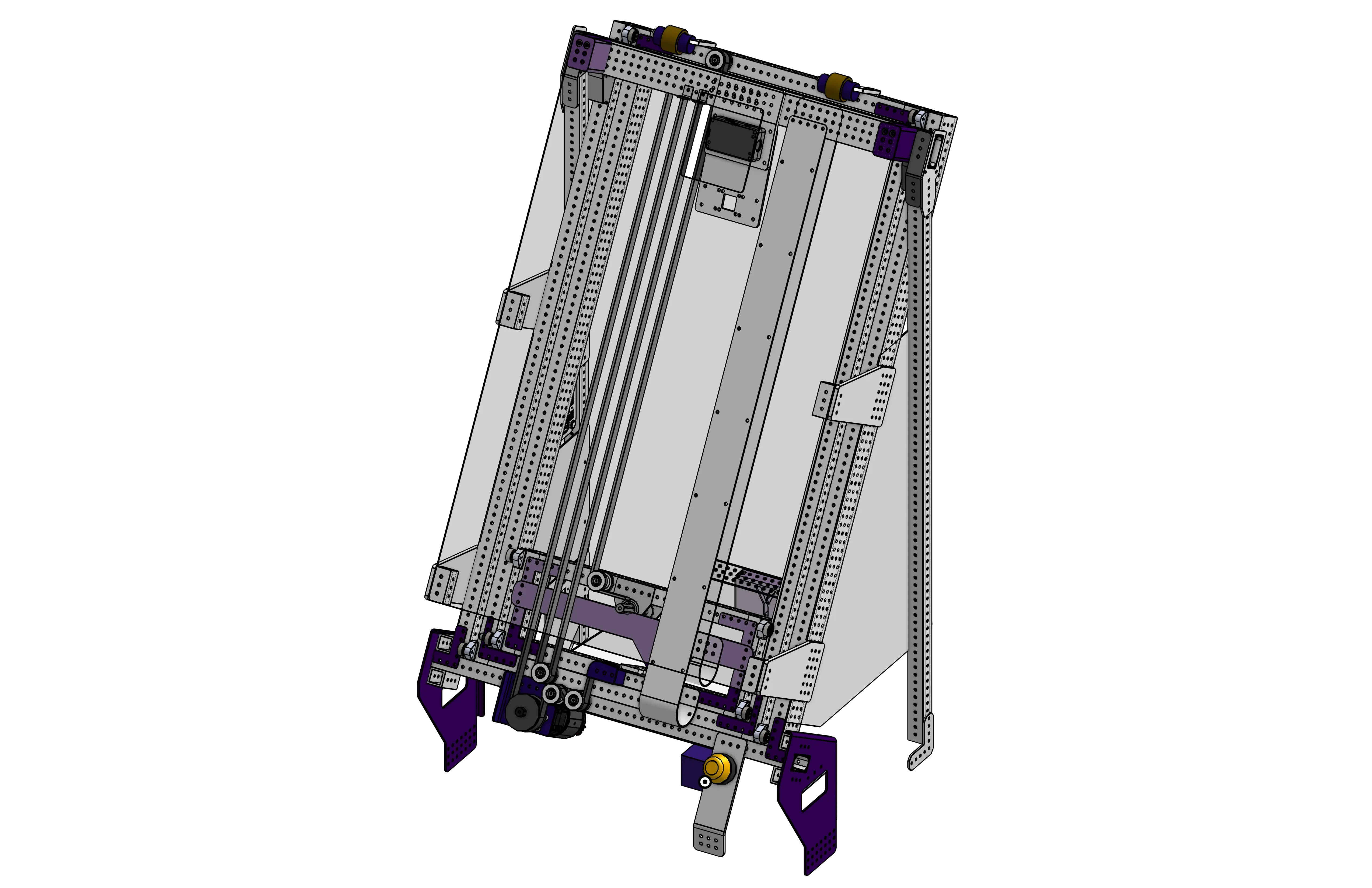

1678 Charged Up elevator CAD render CAD reference 1678's Charged Up Elevator An external cable driven two-stage continuous elevator with COTS bearing blocks and an open-top carriage. 3847 Charged Up elevator CAD render CAD reference 3847's Charged Up Elevator An external timing-belt driven two-stage continuous elevator with constant force springs and COTS bearing blocks.
